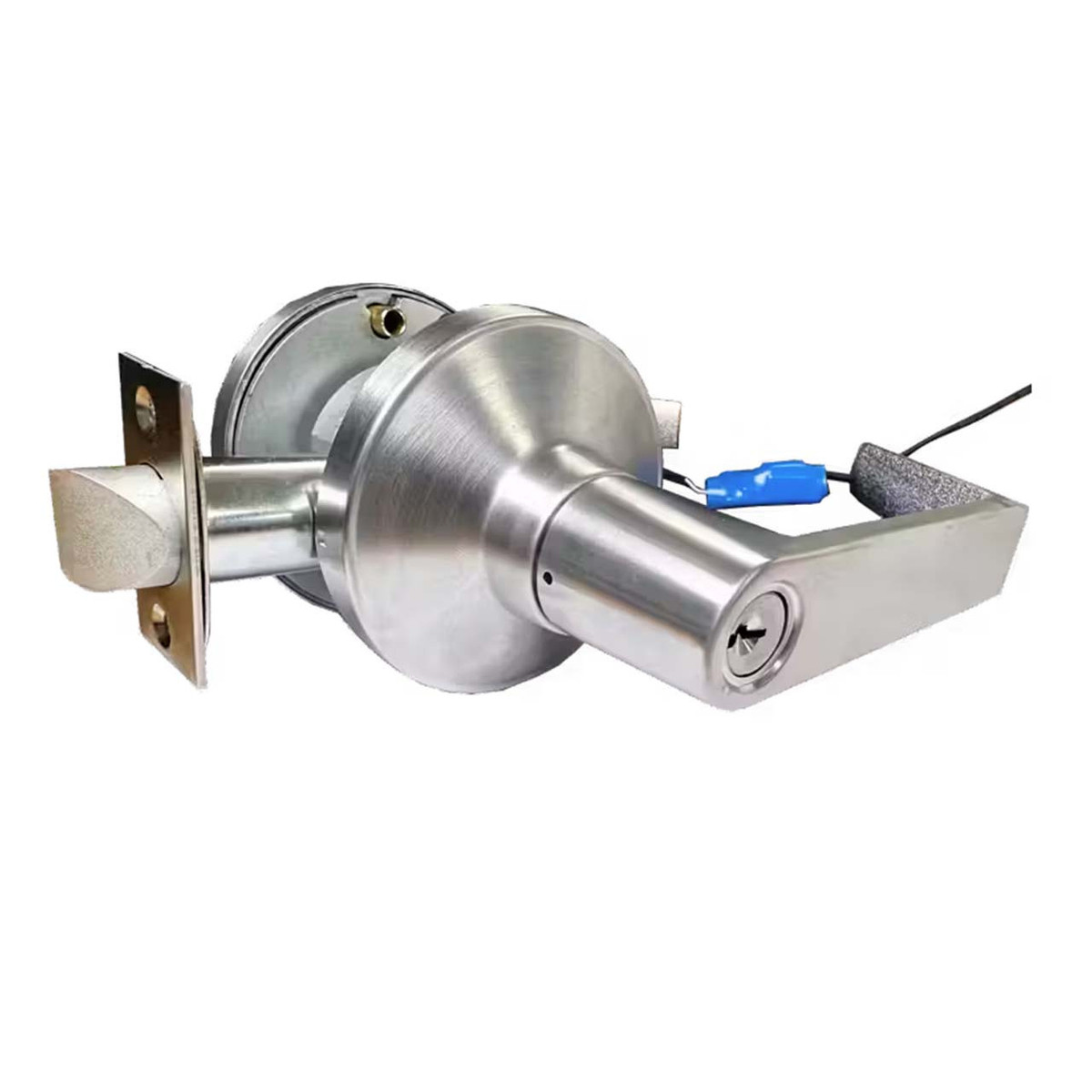

Command Access CL190HD-EU-L6-626, Grade 1 Motorized Electrified Storeroom Lockset, 11-30 VAC/VDC, Electronically Locked (Fail Safe) or Electronically Unlocked (Fail Secure), Field Reversable EL/EU Switch, C Keyway

The Command Access CL190-HD Series is a low-energy motorized lever control cylindrical lock ideal for any continuous duty application or condition requiring low surge and hold current. It is built on a heavy-duty cylindrical lock chassis and is made for high-use environments. The whole assembly is produced right here in the US. Our motor module auto-detects anything from 11-30VDC & includes a dip switch to change from Fail Safe (EL) to Fail Secure (EU). When you choose the CL190-HD, you can be assured that it will work for your unique needs and hold up to rigorous daily use. Features:
• Low maximum current draw 300 mA: Use more locks on a single power supply.
• Low holding current 100 mA: Reliable operation and meets sustainable consideraton.
• Fail Safe(EL) and Fail Secure(EU) field selectable with flip of a switch.
• Multiple lever styles and finishes available.
• Available SFIC or LFIC (Schlage): Cylinder not included.
• Available with Schlage C type keyway standard
• Request-to-exit built-in.
• 5-year “No Hassle” warranty.
